Disa pneumatic Bulk Blast Pots

 DISA Company offers a full range of industrial-grade large-capacity blasting pots, supporting multi-specification customization and flexible configuration to accurately meet the budget ranges and sandblasting process requirements of different customers. This series of equipment comes standard with a high-flow spray gun system, specially designed for high-intensity continuous operations, and can stably handle various heavy-duty sandblasting tasks. With a wide range of applications, it covers stone surface cleaning, metal component restoration, ship maintenance, civil engineering, offshore operations and many other fields.

Features and benefits of Disa pneumatic sandblasting pot:

  • Optimum efficiency User-friendly and safe simple to relocate
  • extremely accurate dosing of abrasive for an optimum balance of air and blast media
  • Easy Disassembly & Serviceability
  • dual line deadman system to prevent unchecked operation
  • emergency stop button, so that the pot can also be switched off quickly by third parties
  • minimum fall in pressure due to air piping, main air tap and mixer pipe being correctly aligned to eachother
  • complete use of abrasive in the pot due to its funnel shaped body
  • Bolt clamps on pusher line make field repairs easier
  • Full flow auto air valve for fast starts and stops
  • Relieving control handle reduces air consumption and reduces stopping times when control handle is released

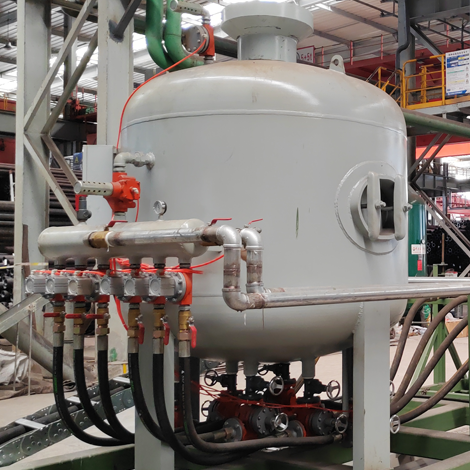

disa-blasting-pot
Control box SP 147
X
The blast pot is designed to be swiftly deactivated, thus ensuring enhanced safety.
SU 034 Bleed Valve
X
To put the blast pot into operation, the Bleed valve must be closed by applying control pressure to the membrane. The air valve is open if we have no control pressure on the membrane, in other words, we speak here of a normally open air valve.
Filling cone SP 014CE
X
The compressed air enters the vessel through the main air valve through the riser pipe. The filling cone SP-014 is pressed upwards into the rubber collar ring by this compressed air flow. The blast pot now forms a closed vessel and is presurised
SU098 Main air valve
X
To start up the blast pot, open the main air valve by applying pilot pressure below the piston. The air valve is closed if we have no control pressure below the piston, in other words, we speak here of a normally closed air valve.
SU 012 Grit cylinder
X
With the aid of the grit cylinder it is possible to have a set amount of blasting media dispensed through the grit valve housing. In the grit valve housing there is a spring which in the rest position always ensures that the piston rod with the rubber cone on it, starts in its outward stroke. In this rest position, the blasting medium flow in the grit tap housing is closed.

Product details

Each model is equipped with:
Air filter
Moisture separator
Pressure regulator
Manually adjustable media valve
Extended sandblasting hose & ergonomic spray gun

Technical data:

Download product datasheet
disa-blast-pot21 disa-blast-pot21

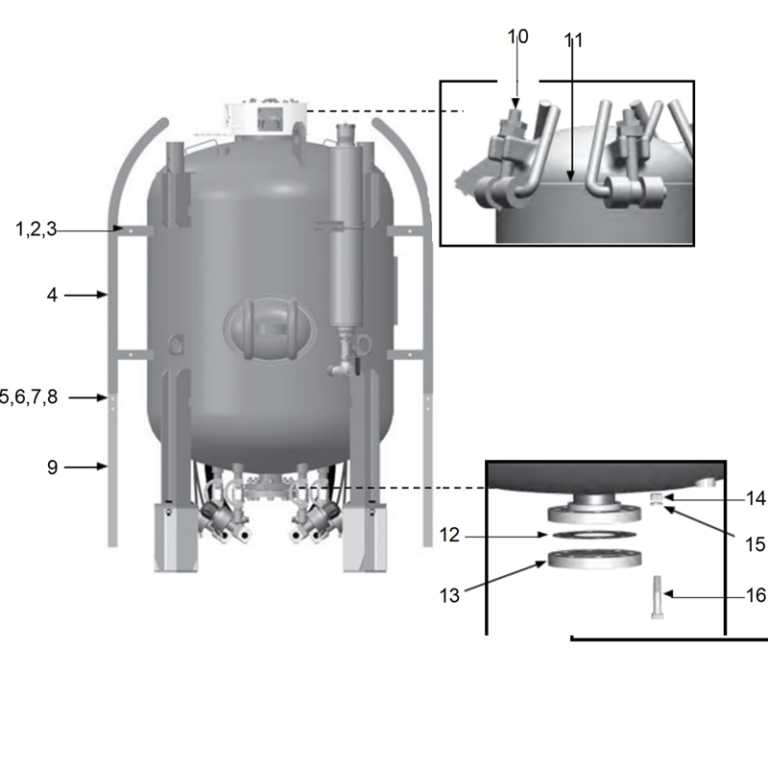

Innovative design

1 1/2-13×1-1/4″UNC Hex Bolt
2 1/2-13 Hex Nut
3 1/2″Washer
4 Ladder Kit
5 3/8″-16 Hex Nut
6 3/8″Lock Washer
7 3/8″Flat Washer
8 3/8-16×1-1/4″A307 Bolt
9 10103915 Ladder Extension with Tape
10 Camlock
11 10″Hatch O-Ring
12 4″Flange Gasket
13 4″Blind Flange
14 3/4-10 Hex Nut
15 3/4″Lock Washer
16 3/4-10×4″Hex Bolt

Disa bulk blast pots for open-air work are designed to be safe and yet retain their efficiency. Operator safety, high production rate and reliability characterize every Blast unit. The bulk sand Blasting pots are approved according to the European Pressure Equipment Directive (97/23/EC) for 10.5 bar working pressure. They give a 20% higher capacity and shorter blasting time than at working pressure of 7 bar. Remote-control device with dead-man’s handle and twin hose is supplied as standard on all blast units.
Disa bulk blast pots are available in various sizes and all are equipped with adjustable abrasive metering valves for all common types of abrasive.
